Fuel & lube skids

Versatile Solutions for Every Jobsite

Thunder Creek skids bring the functionality of our trailer and truck upfit platforms, including diesel, oils, and service capabilities, into a flexible and compact design, tailored to the unique requirements of any operation.

Engineered for mounting on a utility trailer, flatbed truck, or for placement directly on the ground, these skids provide a versatile solution for a wide range of industries, including construction, fleet maintenance, oil and gas, fuel distribution, and preventive maintenance services.

Designed to adapt to complex jobsite logistics, Thunder Creek Skids offer the flexibility and efficiency needed to support operations of any size and scope.

Find Your Solution

Our skids lineup offers a variety of solutions, ranging from primarily fueling to full scale PM.

Multi-Tank Diesel Skid (MTS)

This product is designed to hold 690 or 920 gallons and is compatible with diesel and DEF.

Multi-Tank Oil Skid (MTOS)

This product can hold 460 or 690 gallons of service fluids, supporting a max of 4 different service fluids plus diesel and DEF.

Service & Lube Skid (SLS)

This product is designed to hold 460 or 690 gallons and a maximum of 8 different service fluids.

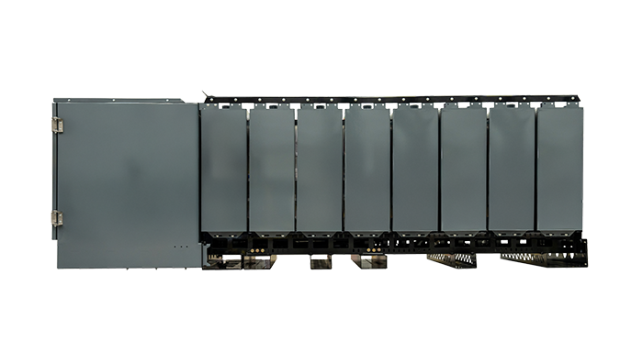

MTS

Multi-Tank Diesel Skid

The Multi-Tank Diesel Skid (MTS) is designed as the skid counterpart to the award-winning, No HAZMAT Fuel and Service Trailer. Mounted on a flatbed truck, trailer or used as a stationary fueling station, it provides safe, compliant diesel delivery where it's needed, keeping your equipment and your operations moving.

Standard Features

Available Capacities: 690 or 920 gallons
Tank Sizes: 55 or 115 gallons
Compatible Fluids: Diesel and DEF
Setups: Mounted on a flatbed truck, trailer, or used as a stationary tank
L/W/H: 133-162"/65"/57"
Empty/Full Weights: 3,600-4,400 lbs./8,400-11,500 lbs.

Note: This product is not rated for gasoline.

MTS System Specs

Tanks
115 gallons per tank (6 or 8 tanks total), 7 gauge sloped floor steel tanks, vents, Spinsecure locking fuel caps, sight level fuel gauges

Pumping System
12V Deep cycle marine battery, 12' power cables, 35' retracting hose reel (1" hose), auto-trip nozzle, extruded aluminum pump manifold, 25 GPM industrial grade 12V pump, 10 micron fuel filter

Additional Options
Gas powered pump upgrade, 55 or 115 gal stainless steel DEF tank, solar battery maintainer, electric valve manifold for automatic shut-off, digital or analog fuel meter, 50'/125'/200' hose reel upgrades, 50' static discharge reel, digital DEF meter, 50' DEF hose reel upgrade, fuel custody transfer meter + ticket printer, 2-stage filter system upgrade (10+4 micron)

MTOS

Multi-Tank Oil Skid

The Multi-Tank Oil Skid (MTOS) brings the proven design of the MTO trailer to a skid platform. With configurations for up to four fluids, it streamlines oil handling and service wherever the work takes you.

Standard Features

Available Capacities: 460 or 690 gallons
Tank Sizes: 25, 55 or 115 gallons
Compatible Fluids: Oils, Coolant, Reclaim, Diesel, DEF, Grease
Setups: Mounted on a flatbed truck, trailer, or used as a stationary tank
L/W/H: 133-162"/65"/68"
Empty/Full Weights: 4,600-4,800 lbs./7,000-9,800 lbs.

Note: This product is not rated for gasoline.

MTOS System Specs

Oil
50' Retracting Hose Reel (1/2" hose), Samson Pumpmaster4 (5:1 Ratio Pump, 2.1 GPM), Mechanical Preset Nozzles (Quarts)

Coolant
50' Retracting Hose Reel (1/2" hose), Samson PumpMaster2 (1:1 Ratio Pump, 2.1GPM), Mechanical Preset Nozzles (Quarts)

Used Oil Reclaim
35' Retracting Reel (1" hose), 4-Way Valve to Empty/Fill with Single Pump, Samson DP200 Diaphragm Pump, Able to Connect Multiple Tanks, Used Filter Drain Box (removable for use as an oil drain pan)

Grease System
50' Retracting Reel (1/4" hose), Samson PumpMaster3 55:1, Trigger Nozzle, 35 or 120 lbs. Grease kit

Pneumatic System
Air Compressor with 50' Air Reel (1/2" hose), Air Line Plumbed for External Air Supply

Diesel System
Samson DP200 Diaphragm Pump, 35' or 50' Retracting Hose Reel, Extruded Aluminum Pump Manifold, 10 Micron Filter or Two-Stage Filter Option (10+4), 12V Deep Cycle Battery, Auto-Trip Nozzle, Electric Manifold Option, 55 or 115 gal Stainless Steel DEF tank

Number of Fresh Oils/Coolant Systems
CONFIGURATIONS	1	2	3	4
Grease AND Reclaim Available	yes	yes	yes	--
Grease OR Reclaim Available	--	--	--	yes
Diesel System Available	yes	yes	yes	yes
DEF System Available	yes	yes	yes	yes

MTOS Product Walkaround

SLS

Service & Lube Skid

The Service and Lube Skid (SLS) transforms any flatbed truck, trailer or fixed drop point into a complete jobsite service station. With capacity for up to eight fluids, it gives your crew the tools to handle routine maintenance quickly and decimate downtime.

Standard Features

Available Capacities: 460 or 690 gallons
Tank Sizes: 25, 55 or 115 gallons
Compatible Fluids: Oils, Coolant, Reclaim, Top Off Diesel, Grease
Setups: Mounted on a flatbed truck, trailer, or used as a stationary tank
L/W/H: 133-162"/65"/68"
Empty/Full Weights: 5,000-5,300 lbs./7,400-8,700 lbs.

Note: This product is not rated for gasoline.

SLS System Specs

Oil
50' Retracting Hose Reel (1/2" hose), Samson Pumpmaster4 (5:1 Ratio Pump, 2.1 GPM), Mechanical Preset Nozzles (Quarts), Desiccant Tank Vents & Post Pump Filter Option

Used Oil Reclaim
50' Retracting Reel (1" hose), 4-Way Valve to Empty/Fill with Single Pump, Samson DP200 Diaphragm Pump, Able to connect multiple tanks, Used Filter Drain Box (Removable for use as an oil drain pan)

Coolant
50' Retracting Hose Reel (1/2" hose), Samson PumpMaster2 (1:1 Ratio Pump, 2.1GPM), Stainless Steel Tank, Mechanical Preset Nozzles (Quarts)

Used Coolant Reclaim
50' Retracting Hose Reel (3/4" hose), Samson PumpMaster2 (1:1 Ratio Pump, 2.1GPM), 4-Way Valve to Empty/Fill with Single Pump, Able to connect multiple tanks

Grease System
75' Retracting Reel (1/4" hose), 55:1 Samson Pumpmaster4 Pump, 35 or 120 lbs. Grease Kit

Pneumatic System
Air Compressor with 50' Air Reel (1/2" hose), Air Line Plumbed for External Air Supply

Top Off Diesel System
50' Retracting Reel (1/2" hose), 1:1 Samson Pumpmaster2 Pump, Mechanical Preset Nozzle (Quarts)

Fuel and Lube Skid Specifications

Click to download the brochure for the fuel and lube skids lineup with all product specifications.
